Mig-17

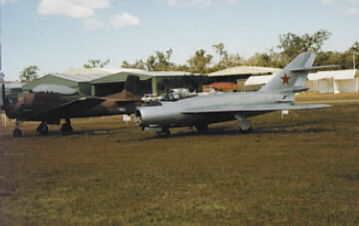

The Museum's MiG-17 is a license built version known as a Lim-6bis.
It was built in Poland by PZL-WSK Milec for the Polish Air Force. The only
noticable difference between the Russian and the Polish version is the
addition of a Drag Chute housing at the base of the Vertical Fin. The Mig 17 was used in Korea
Vietnam and is still used by many third world countries!
Made in Poland
Technical Specifications
Manufactured by:PZL-WSK
Crew: One
Engine:One Klimov VK-1F Jet Engine
Performance:
-
Max. speed: 711kt (1145km/h)
-
Cruising -
-
Service Ceiling: 15100m (54,500 ft)
-
Range: 1470 km
-
Weight (combat):6,075 kg (13,379 lb)
-
(empty)
3939 kg
Dimensions:
-
Wingspan: 9.63m (36 ft 4 in)
-
Length: 11.26m (31 ft 7 in)
-
Height: 3.5m (11 ft)
Armament:
-
One 37mm Cannon
-
Two 23mm Cannon
-
Two 250kg Bombs
-
Two Rocket Launchers
